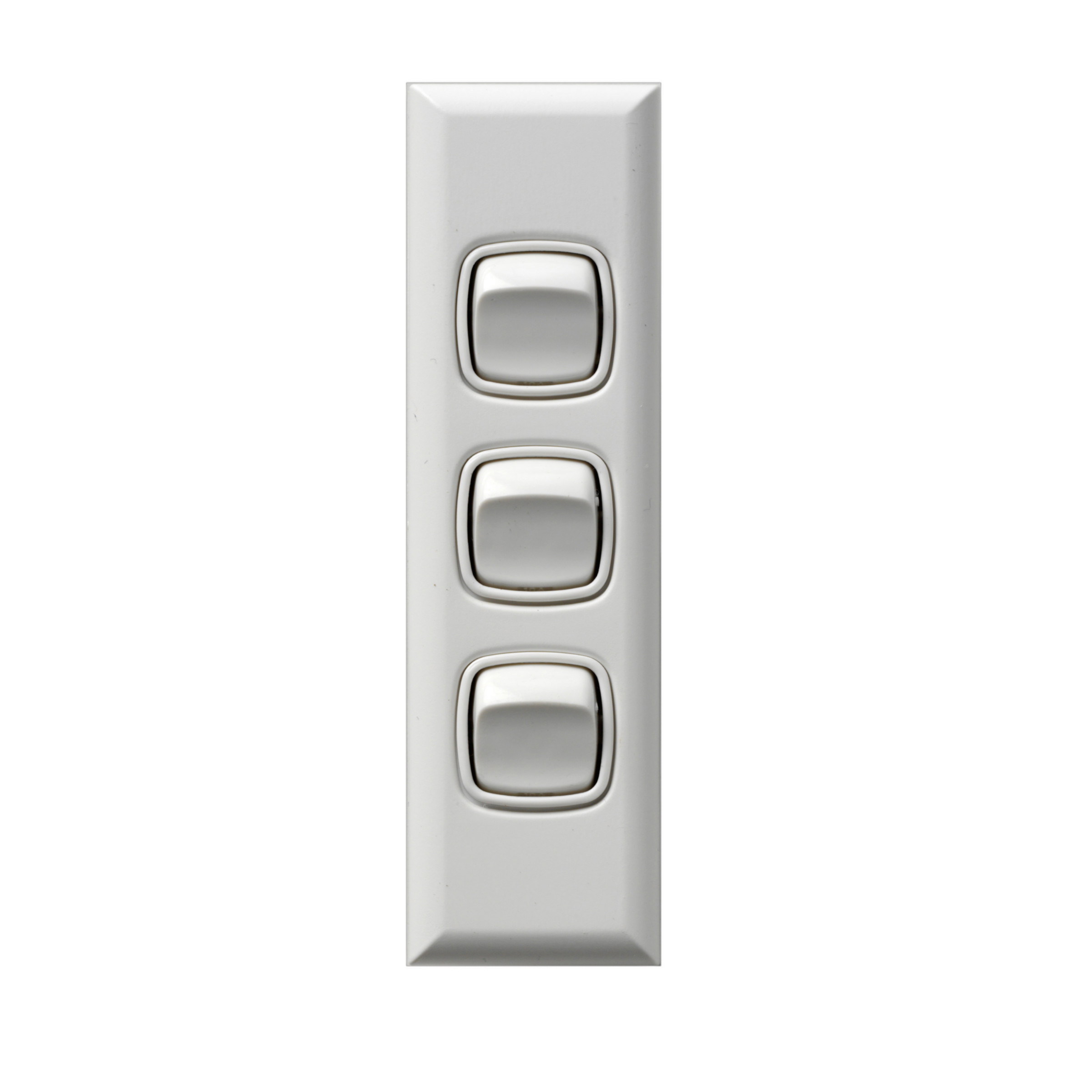

HPM Excel 10A 3 Gang Single Pole Double Throw Architrave Rocker Switch White

Excel HPM

HPM Excel 10A 3 Gang Single Pole Double Throw Architrave Rocker Switch White

REF. CDXLA770/3WEWE Barcode. 9321001274551
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • 3 Gang architrave size fitting, to fit on door ledges or other narrow areas
  • 10A 240V a.c.
  • Plate Size: 110mm x 35mm
  • Mounting Centres 95mm
User Recommendations
  • Cut-out size: 25 x 76mm
Overview
The HPM 3 Gang Architrave Size Switch CDXLA770/3WEWE is narrow in design, suited for door frames or where size is an issue

Technical Specifications

Number of rockers 3
Mounting method Surface mounted
Material Plastic
Colour White
Colour of switch operator White
Nominal voltage 240 V
Device width 73 mm
Device height 117 mm
Device depth 35 mm
