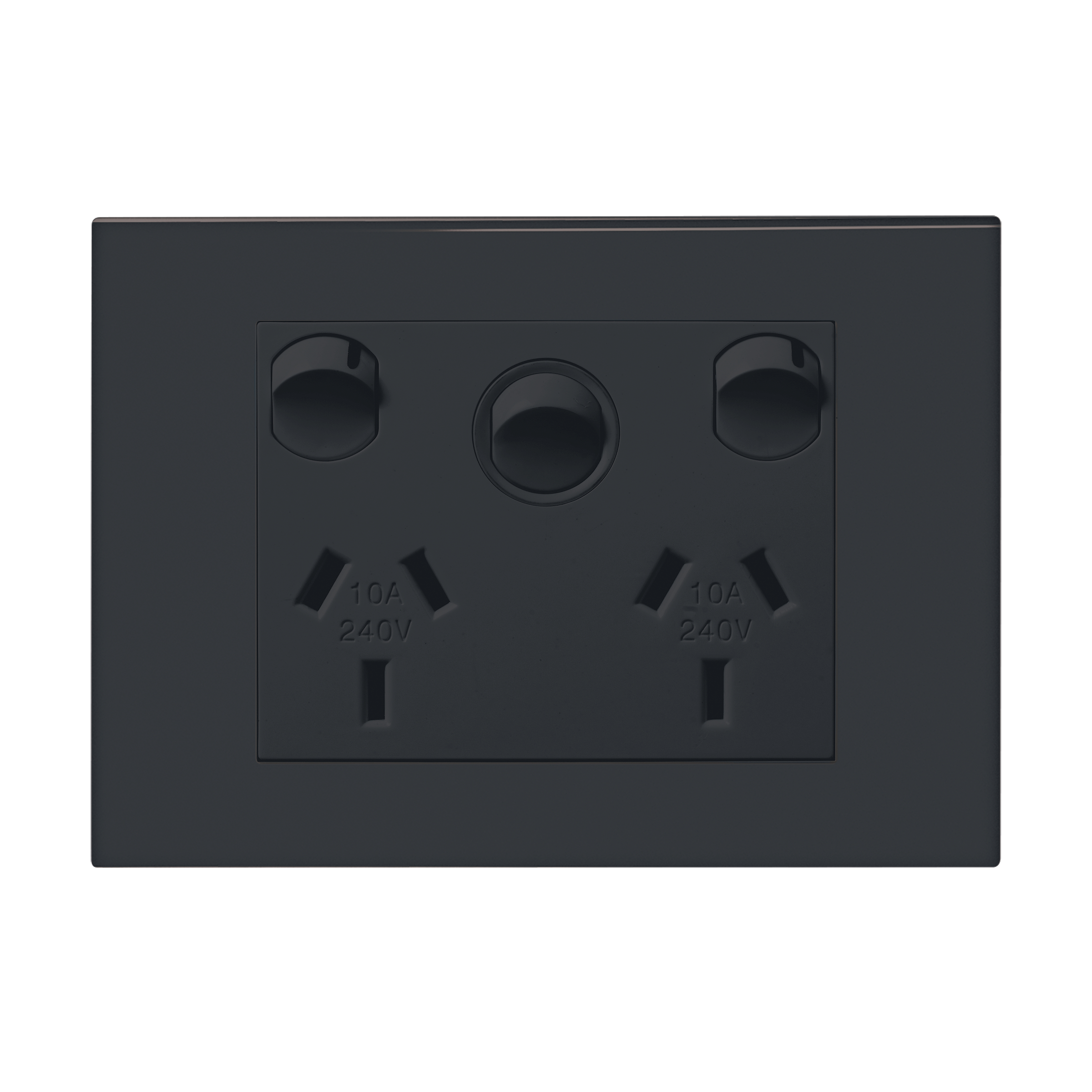

HPM Vivo 10A Horizontal Double Power Point with Switch Dark Grey

Vivo HPM

HPM Vivo 10A Horizontal Double Power Point with Switch Dark Grey

REF. EV777XGR Barcode. 9321001465348
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • Extra function hole compatible with VIVO mechanism range
  • Safety shutters for maximum safety of end-user
  • Inline terminals for easier installation
  • Retained terminal screws
  • Includes common coverplate that is interchangable with the 14 colour finishes of the Vivo range
User Recommendations
  • Suitable for all commercial and residential installations such as kitchens, bedrooms, offices, retail, hospitality and education facilities
  • Cut-out size: 56 x 96mm
Overview
The HPM Vivo 10A Double Power Point is an ideal way to enhance both the style and functionality of your home. Its sleek, square design seamlessly blends with any decor, while the interchangeable coverplate lets you personalise it to your preference. Equipped with internal safety shutters for added protection and captive terminal screws for easy installation, this power point combines safety and convenience effortlessly.

Quality You Can Trust

Installation
  • Oval 84mm fixing points - making it easier to adjust when installing
Unique Characteristics
  • Customise to suit your tastes and your interior with the coloured coverplate options (sold separately)

Technical Specifications

Model Australian standard AS/NZS 3112 (type I)
Number of socket outlets switchable 2
Colour Grey
Mounting method Surface mounted
Type of fastening Mounting with screw
Material Plastic
With on/off switch Yes
Colour of switch operator Grey
Nominal voltage 240 V
Device width 118 mm
Device height 85 mm
Device depth 25 mm
Voltage type AC

Documentation

1 document
Technical Sheet
DSH EV777X HPML1619.pdf pdf (0.36 Mo)
